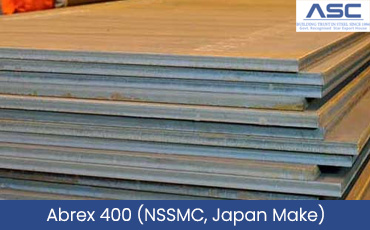

Amardeep specializes in delivering high-quality Abrex 400, manufactured by Amardeep. As manufacturers and
suppliers, they are dedicated to providing top-notch plates, which have gained significant demand due to their
exceptional combination of high strength, hardness, and ductility. Abrex 400 is suitable for applications
exposed to wear from tough abrasives like minerals, rocks, waste, scrap, and sand.
Abrex 400 boasts easy cutting, welding, machining, and bending capabilities. Available in various thicknesses,
it ensures closer thickness tolerances and high surface finishes, enhancing the final applications with an
excellent appearance and well-designed fittings. Widely adopted in applications such as loaders, feeders,
skips, dump trucks, buckets, and cutting edges, Abrex 400 is the preferred choice for users.
Its hardness is achieved through the water quenching technique, ensuring good strength. The carbon content and
precise compositions control hardness, minimizing variations in properties. The production process results in a
lath-type martensitic structure with greater hardness, toughness, and strength, allowing for 100% thickness
hardening.
Amardeep, a reliable and trustworthy supplier and stockist of Abrex 400 plates manufactured by NSSMC in Japan,
delivers globally. They hold legal certifications and provide plates meeting international standards for raw
material quality across various industrial applications. The industry-supplied plates are of superior quality,
satisfying diverse application needs. Undoubtedly, these plates are widely accepted by clientele across the
globe in various industries.
Thickness : 6mm to 100mm
Width : 1,500mm to 2,500mm
Length : 6,000mm to 12,000mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment : N, Q+T
Surface Paint : EP, PE, HDP, SMP, PVDF
Material : ABREX 400, AR 400 Steel Plate, ABREX 400 Abrasion Resistant Steel Plates, ABREX 400
Wear Resistant
Plates
| ABREX 400 Chemical Composition (%) | |||||||||||
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 - 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Mechanical properties of Abrex 400 | |||||
| Grade | Mechanical Property | Charpy V Impact Test | |||
| ABREX 400 | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
| Brand | Manufacture/Co | Country | Hardness Range |
| Value for AR 400 | |||
| Abrex 400 | NSSMC | Japan | 360-440 |
