Since 1984, Amardeep Steel has helped EPCs, OEMs and MRO teams choose the right material of construction (MOC) for piping, valves, fittings and pressure equipment. Getting pipe material selection right the first time protects uptime, avoids premature corrosion failures, and keeps a project on schedule and on budget. This page walks through how we approach MOC for valves and piping, summarizes the piping material grades we stock and export, and gives you a practical framework for shortlisting the right grade for your process conditions.
Explore Our Range of MOC Products for Piping & Valves
Beyond the product grid, see our piping solutions overview and process equipment range for fully engineered MOC packages rather than individual product forms.
What Is MOC Piping and Why It Matters
Material of construction (MOC) is the engineering decision that determines which metal or alloy a pipe, fitting, valve or vessel is made from, based on the fluid it carries, its temperature and pressure, and the corrosion risk over the design life of the asset. In piping systems specifically, MOC piping decisions affect wall thickness, corrosion allowance, weldability, and whether the line needs a lined or clad alternative. A wrong MOC call is one of the most expensive mistakes on a piping project; it shows up years later as leaks, wall-thinning, or stress-corrosion cracking rather than at commissioning.
How to Approach Pipe Material Selection
Pipe material selection should start with duty data, not a catalogue. Before shortlisting a grade, confirm:
- Fluid and contaminants: chloride ppm, pH, H₂S or CO₂ content, dissolved oxygen.
- Operating envelope: normal and peak temperature and pressure, plus thermal or pressure cycling.
- Flow conditions: velocity, erosion potential, and any solids or sand loading.
- Code and QA requirements: design code, NDT, PMI, and EN 10204 material test certificate (MTC) level.
Once duty data is confirmed, material selection for piping becomes a shortlisting exercise against the cost-vs-performance ladder: Carbon Steel → 300-series Stainless → Duplex Steel Pipes & Tubes → Super Duplex Steel Pipes & Tubes → 6-Mo alloys (SMO 254) → Nickel Alloys → reactive metals such as Titanium or Tantalum. Our engineers can shortlist 1–2 compliant grades and propose testing once you share the fluid, temperature/pressure range and applicable code.
MOC for Valves and Piping: Key Considerations
MOC for valves and piping should be assessed together, not in isolation, a valves body, trim and seat material all need to tolerate the same service conditions as the connecting pipe, and dissimilar-metal pairings at flanges or threaded joints introduce galvanic risk if not isolated correctly. Key considerations include:
- Seawater and chlorides: start with Duplex 2205; move to Super Duplex 2507 or 254 SMO as temperature and Cl⁻ rise; Titanium Grade 2 for the most demanding, low-maintenance service.
- Sour hydrocarbons / H₂S service: Duplex, Super Duplex, or nickel alloys qualified to relevant sour-service standards, with hardness controlled to the applicable limits.
- Mixed acids and shifting redox conditions: Hastelloy Pipes & Tubes grades for pitting/crevice/SCC resistance; Tantalum for the most aggressive acids at temperature, particularly in Alloy 28 Pipes, Plates & Fittings applications.

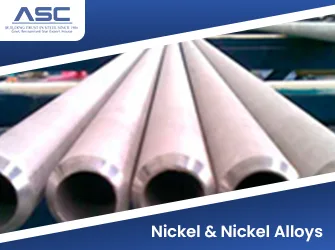

- High temperature and hot gas exposure: Inconel Pipes & Tubes 600/601/625 for hot strength and oxidation resistance; Incoloy 800/800H/800HT Pipes & Tubes for long exposures in heaters and reformers.
- Crevices and galvanic couples: minimize gasket gaps and stagnant zones; use isolation kits wherever dissimilar metals meet (e.g., Cu-Ni to steel, Titanium to stainless).
For fabricated connections, choose buttweld pipe fittings for welded systems or forged threaded & socket weld fittings for smaller-bore, screwed or socket-weld connections. Match your gasket material selection and fasteners to the same corrosion allowance as the parent pipe — a mismatched gasket or bolt is a common weak point even when the pipe grade itself is correct.
Piping Material Grades by Industry
Piping material grades are ultimately chosen against the operating environment of the industry the asset serves:
- Oil & Gas, Petrochemicals, Refineries: process piping, heat exchangers, columns, furnace coils, desalination modules and seawater intake systems, typically built from carbon steel pipes & tubes or stainless steel pipes & tubes depending on service.
- Chemical Processing & Fertilizers: reactors, absorbers, pickling lines and acid-service equipment in stainless, duplex, nickel alloys and reactive metals.
- Power & Desalination: boilers, superheaters, condensers and cooling-water systems needing elevated-temperature and chloride resistance.
- Marine & Infrastructure: Cu-Ni and duplex for seawater service; Corten for weather-exposed structural and facade work.
Why Engineers Choose Amardeep Steel for MOC Piping Projects
- Since 1984 — decades of material selection experience on high-stakes piping and valve projects.
- Global exporter — supporting EPCs and OEMs with export packing, logistics and documentation.
- Broad range under one roof — carbon, alloy, stainless, duplex, super duplex, nickel alloys and reactive metals, all traceable to EN 10204 MTCs.
- Customization — cut-to-size, bending, machining, U-bends, and third-party inspection to your specified standard.
Which Piping Material Grade Is Right for You?
Choosing the right material is critical. Use the pointers below to match your duty conditions to the best option, shortlist 1–2 grades, and confirm with tests and documentation.
- Start with the duty data: Note the fluid and contaminants, chloride ppm, pH, H₂S or CO₂, and dissolved oxygen. Record normal and peak temperature and pressure, plus any thermal or pressure cycling.
- Seawater and chlorides: Begin with Duplex 2205 for balanced cost and strength. Move to Super Duplex 2507 or 254 SMO as temperature and Cl⁻ rise; choose Titanium Grade 2 for the most robust, low-maintenance service.
- Cooling water, condensers, intake/outfall: Cu-Ni 90/10 or 70/30 copper nickel pipes & tubes offers seawater resistance with good heat transfer. Consider Duplex 2205 for higher strength, or Titanium where fouling, velocity, or temperature push limits.
- Warm brines and desalination: 254 SMO or Super Duplex 2507 handle high chlorides and crevice risk. Step up to Titanium if temperature or stagnation periods are expected during cleaning or outages.
- Mixed acids and shifting redox: Use Hastelloy grades where pitting, crevice attack, and SCC are concerns. For very strong acids at temperature, evaluate Tantalum; for chloride-rich acids, 254 SMO may be a cost-savvy bridge.
- High temperature and hot gas exposure: Inconel (600/601/625) provides hot strength with oxidation and carburization resistance. Incoloy 800/800H/825 suits long exposures in heaters and reformers where hot, corrosive media are present.
- General utility and large volumes: Carbon Steel is the value choice for moderate media and structural work. Shift to Alloy Steel for strength at temperature, or 304L/316L when hygiene or basic corrosion resistance is needed.

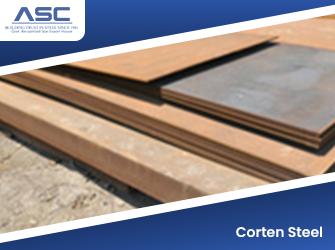

- Atmospheric exposure and architecture: Corten forms a stable patina in suitable atmospheres, reducing repaint cycles. Use where visual character and lower maintenance over life are priorities.

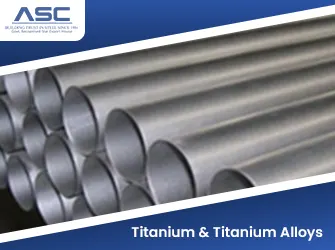

- Weight-sensitive equipment: Titanium Grade 2 or Grade 5 titanium pipes & tubes gives high strength-to-weight with chloride resistance. Useful for offshore hardware, condensers, and heat exchangers where mass matters.
- Sour hydrocarbons and H₂S service: Select Duplex or Super Duplex, or nickel alloys qualified to relevant sour-service standards. Control hardness and verify limits for Cl⁻, H₂S, and temperature before welding.
- Velocity, erosion, and solids: Check allowable flow rates, especially for Cu-Ni and stainless in sand-laden streams. Smooth layouts and generous radii at elbows reduce impingement and wall loss.
- Welding and fabrication checks: Match filler metals to base alloy, control interpass temperatures, and clean welds properly. Confirm U-bends, forming steps, and heat treatment align with project QA.
- Crevices and galvanic couples: Minimize gasket gaps and stagnant zones to limit crevice attack. Use isolation kits when dissimilar metals meet, for example Cu-Ni to steel or Titanium to stainless.
- Cleaning and shutdown chemistry: Pick materials that tolerate your CIP acids or alkalis and the oxygen content during idle periods. Validate that off-cycle chemicals will not trigger localized attack.
- Cost vs performance ladder: Typical progression: Carbon Steel, Stainless 300-series, Duplex, 6-Mo, Nickel Alloys, then reactive metals like Titanium, Zirconium 702 pipes & tubes or Tantalum for extreme corrosion resistance. Compare life-cycle cost, not just material price.
- Compliance and documentation: Map selections to code requirements and test plans. Specify EN 10204 MTCs, NDT, PMI, IGC where applicable, and confirm corrosion allowance and thickness against design life.
What to send us: fluid and contaminants, chloride ppm, temperature and pressure range, velocity or solids, design code, and QA needs. We will shortlist compliant grades, propose testing, and quote with export-ready packing and timelines.
Frequently Asked Questions
1. What does MOC mean in piping?
MOC (Material of Construction) is the metal or alloy specified for a pipe, fitting or valve based on the fluid, temperature, pressure and corrosion risk it must withstand over the design life of the asset.
2. How do I select a pipe material for a new project?
Start with the service conditions, including the process fluid, contaminants, chloride concentration, operating temperature, pressure range, and applicable design codes. Shortlist suitable materials by comparing performance and cost, from carbon steel and stainless steel to duplex, 6-Mo, nickel alloys, and reactive metals. Final material selection should be supported by testing and EN 10204 material certification.
3. What's the practical difference between Duplex and Super Duplex stainless?
Both resist chloride attack better than 300-series stainless. Super Duplex has higher pitting resistance and strength, so it's favored for severe seawater and subsea jobs. Duplex is often chosen where conditions are demanding but not extreme.
4. When should I consider SMO 254 instead of 316L or duplex?
Use SMO 254 when chloride levels and temperatures push 316L past its limits and when duplex is constrained by weldability or qualification. It's a proven option in brines, desalination and chloride-rich chemistries.
5. Inconel vs Incoloy: which suits high-temperature duty?
Both work at elevated temperatures. Inconel grades like 625 are known for hot strength and oxidation resistance in furnaces and hot sections, while Incoloy 800/800H/825 combine high-temp stability with corrosion resistance in heaters and process equipment. Your media and temperature profile decide the choice.
6. Where are Copper-Nickel alloys used?
Cu-Ni 90/10 and 70/30 shine in seawater service such as condensers, desalination and marine cooling where biofouling and corrosion resistance reduce downtime.
7. Why pick a reactive metal like Titanium or Tantalum?
Choose Titanium when you need a strong, lightweight metal with excellent seawater and many chemical resistances. Choose Tantalum for very aggressive acids and mixed media where even high-nickel alloys struggle, especially in heat exchangers and reactors.
Ready to Specify or Compare Piping Material Grades?
Tell us your process fluid, temperature, pressure, target code and any NDT or MTC requirements. We'll recommend the right material of construction for your piping and valves, propose thicknesses and testing, then quote with delivery timelines.
