Amardeep Steel manufactures, supplies and exports ASTM A182 F304 Stainless Steel 304 Forged Fittings that are in compliance with ASME B16.11, MSS SP-83 and MSS SP-95. We have 304 stainless steel socket weld fittings and threaded fittings in Class 3000, 6000 and 9000. These SS 304 forged fittings are very effective corrosion, durable and structural integrity fittings applicable in oil and gas, petrochemical, chemical processing, pharmaceutical industries.

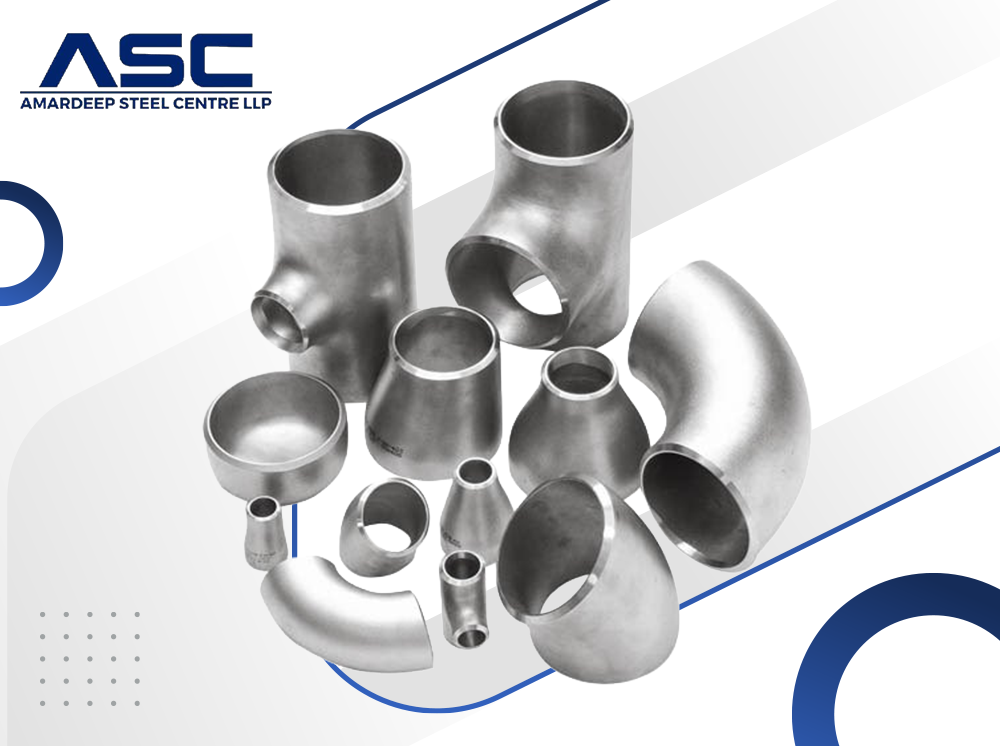

Our in-house forging facility ensures full material traceability and consistent product quality. Amardeep Steel supplies SS 304 forged fittings to clients in 40+ countries with Mill Test Certificates (EN 10204 3.1 / 3.2) as standard. We maintain competitive stainless steel 304 forged fittings price without compromising quality. Our technical team works closely with clients to deliver both standard and custom solutions as per project requirements. For related products, explore our 304 Pipe Fittings and Stainless Steel 304 Butt Weld Fittings.
Table of Contents
- Equivalent Grades of SS 304 Forged Fittings
- Chemical Composition of ASTM A182 SS 304 Forged Fittings
- Mechanical Properties of Stainless Steel 304 Forged Fittings
- SS 304 Forged Fittings Pressure Ratings — Class 3000, 6000 & 9000
- Stainless Steel 304 Forged Fittings Price List
- Types of ASTM A182 F304 Forged Fittings
- ASME SA 182 F304 Surface Finishes
- Size Chart of Stainless Steel 304 Forged Fittings
- SS 304 Forged Fittings Thread Types — NPT, BSPT, BSPP, UNF & IMT
- Industrial Applications of SS 304 Forged Fittings
Equivalent Grades of SS 304 Forged Fittings
| STANDARD | UNS | WNR | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
Chemical Composition of ASTM A182 SS 304 Forged Fittings
| Element | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| Composition (%) | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 18.0 – 20.0 | – | 8.0 – 11.0 |
Note: Grade 304 contains no molybdenum. For applications requiring higher pitting resistance in chloride environments, refer to Stainless Steel 316 Forged Fittings.
Mechanical Properties of Stainless Steel 304 Forged Fittings
| Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Point | 1400°C (2550°F) |
| Tensile Strength | Psi – 75,000 / MPa – 515 |
| Yield Strength (0.2% Offset) | Psi – 30,000 / MPa – 205 |
| Elongation | 35% (minimum) |
| Hardness (Rockwell B) | 92 max |
| Hardness (Brinell) | 210 HB max |
SS 304 Forged Fittings Pressure Ratings — Class 3000, 6000 & 9000
Amardeep Steel supplies SS 304 forged fittings in Class 3000, 6000, and 9000 pressure ratings suitable for high-pressure industrial applications.
| Size (Inches) | 1/4 | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 3 | 4 | 6 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000 (PSI) | 3000 | 3000 | 3000 | 3000 | 2500 | 2000 | 1500 | 1250 | 1000 | 750 |
| 6000 (PSI) | 6000 | 6000 | 6000 | 6000 | 5000 | 4000 | 3000 | 2500 | 2000 | 1500 |
| 9000 (PSI) | 9000 | 9000 | 9000 | 9000 | 7500 | 6000 | 4500 | 3750 | 3000 | 2250 |
Stainless Steel 304 Forged Fittings Price List
Find the most competitive stainless steel 304 forged fittings price at Amardeep Steel. As a trusted manufacturer and supplier, we offer transparent pricing with no hidden costs. Contact us directly for:
- ASTM A182 Stainless Steel 304 Forged Fittings bulk pricing
- SS 304 Forged Fittings customized quotations
- Volume discounts for large orders
- Quick price responses within 24 hours
Manufacturing & Forging Process of 304 Stainless Steel Socket Weld Fittings
Amardeep Steel manufactures ASTM A182 F304 forged fittings using closed-die and open-die forging at controlled temperatures (1038°C–1149°C). This is followed by solution annealing, water quenching, and CNC machining to ASME B16.11 standards. Each product undergoes PMI testing, hardness testing, and inspection before dispatch.

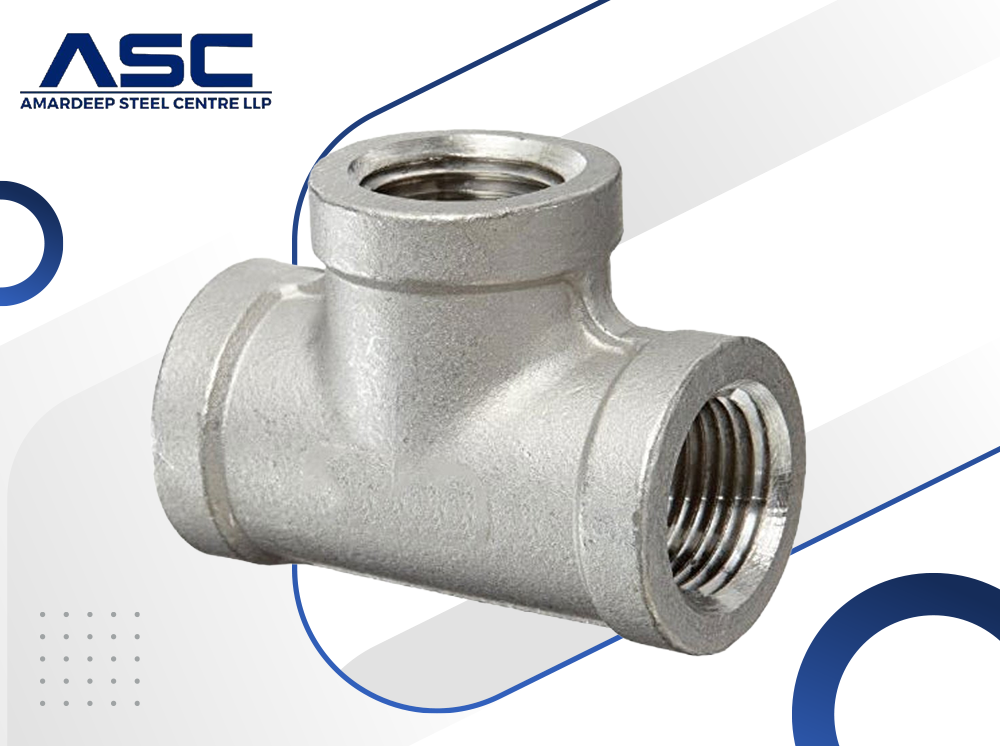

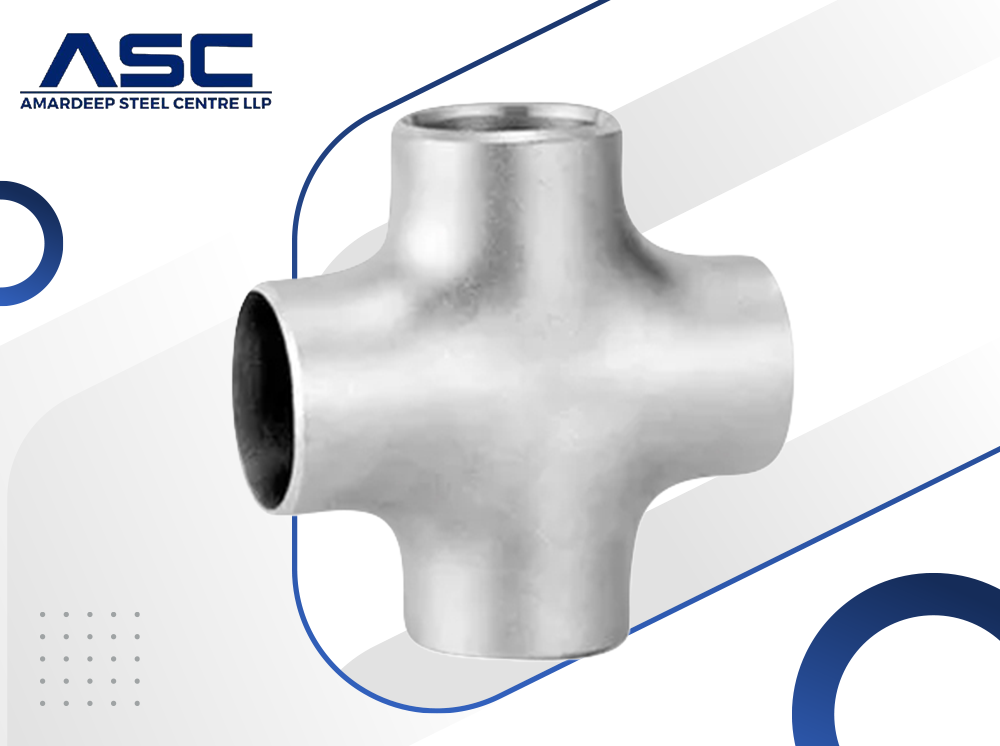

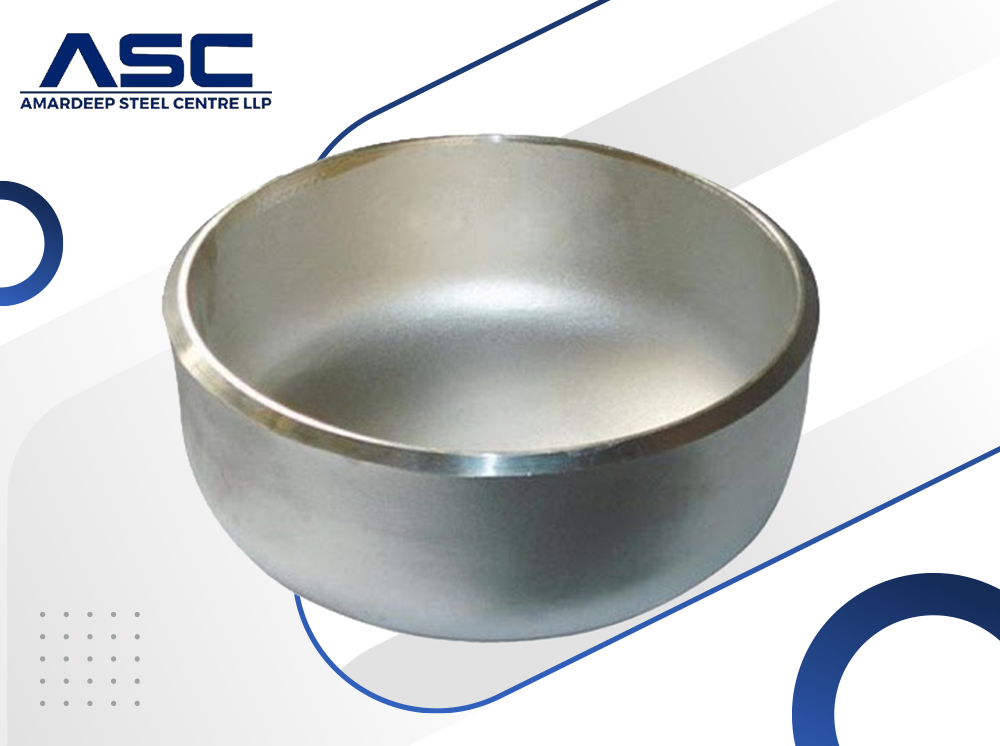

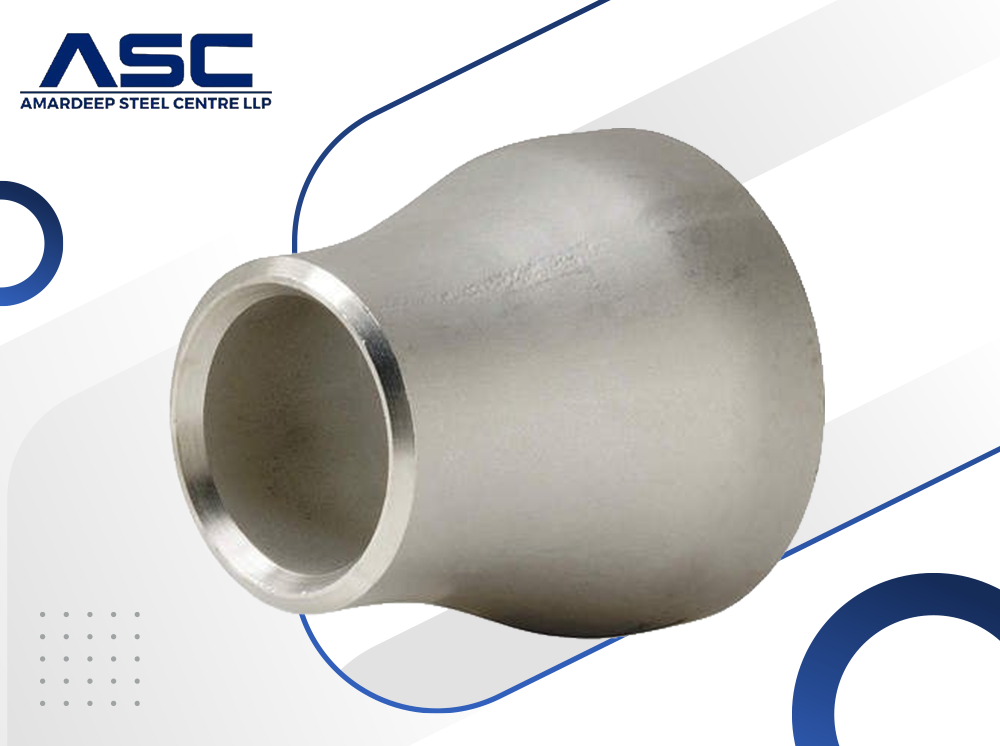

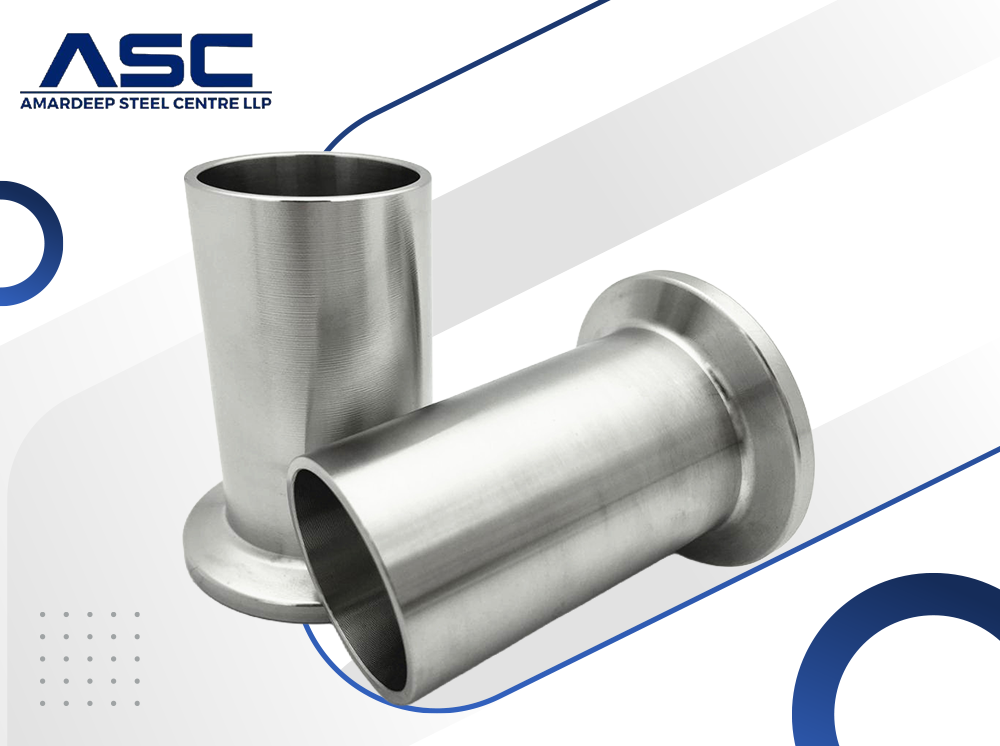

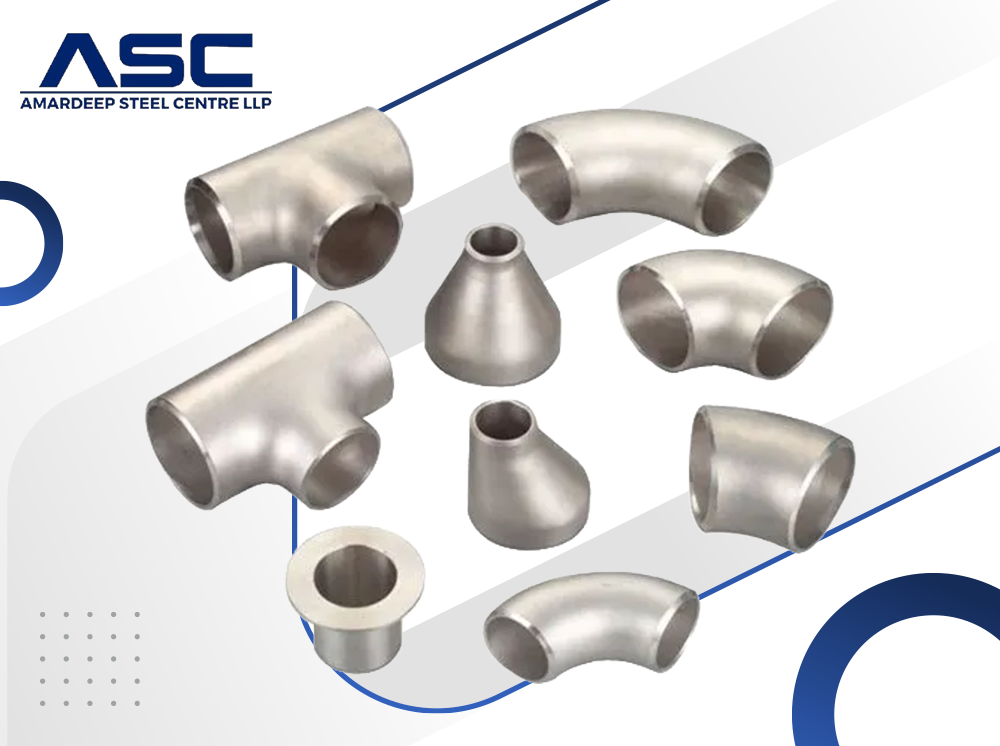

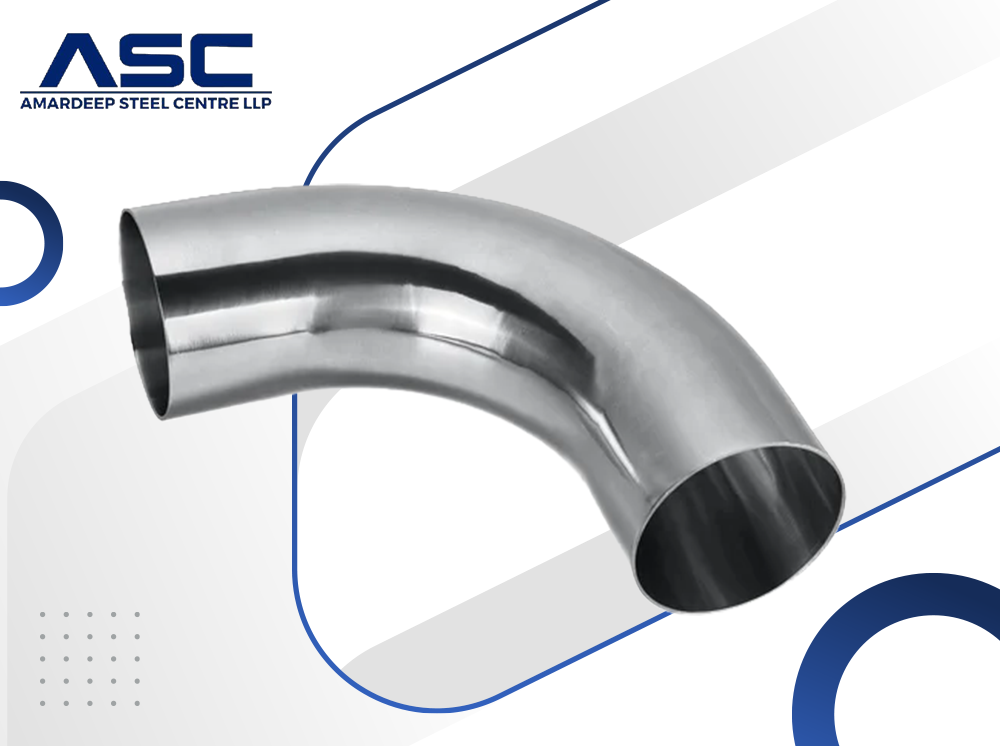

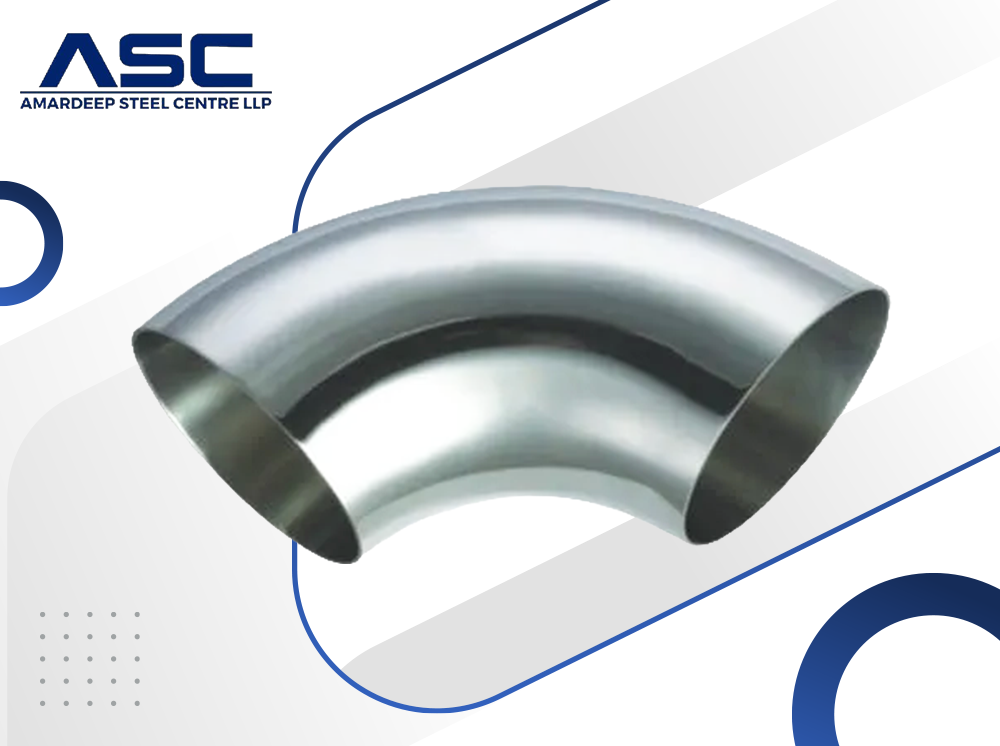

Types of ASTM A182 F304 Forged Fittings
ASME SA 182 F304 Surface Finishes
Our SS 304 Forged Fittings are available in multiple surface finishes to suit your application requirements:
- Smooth Finish - For general industrial applications
- Polished Finish - Ideal for pharmaceutical and food processing
- Mill Finish - Standard as-forged condition
- Bright Annealed - For superior corrosion resistance
Size Chart of Stainless Steel 304 Forged Fittings
Available in sizes ranging from 1/8" to 4" with multiple pressure ratings and configurations.
SS 304 Threaded Fittings Dimensions — NPT Thread Chart
|
Size |
Major Diameter (mm) |
TPI |
Pitch (mm) |
|---|---|---|---|
|
1/8" |
10.2 |
27 |
0.94 |
|
1/4" |
13.6 |
18 |
1.41 |
|
1/2" |
21.3 |
14 |
1.81 |
|
1" |
33.4 |
11.5 |
2.21 |
|
2" |
60.3 |
11.5 |
2.21 |
|
4" |
114.3 |
8 |
3.18 |
ASTM A182 F304 Forged Fittings Tolerances (ASME B16.11)
|
Size Range |
Length |
Wall Thickness |
Radius |
|---|---|---|---|
|
1/2"–1" |
±1.5 mm |
±12.5% |
±1.5 mm |
|
1"–2" |
±2 mm |
±12.5% |
±2 mm |
|
2"–4" |
±3 mm |
±12.5% |
±3 mm |
SS 304 Forged Fittings Thread Types — NPT, BSPT, BSPP, UNF & IMT
- NPT
- BSPT
- BSPP
- UNF
- IMT
Industrial Applications of SS 304 Forged Fittings
Stainless Steel 304 Forged Fittings are extensively used across various industries:
- Oil & Gas Industry - Pipeline connections, offshore platforms
- Chemical Processing - Acid handling, chemical reactors
- Petrochemical Plants - Refineries, distillation units
- Power Generation - Boilers, heat exchangers
- Pharmaceutical Industry - Sanitary piping systems
- Food & Beverage - Processing equipment, dairy plants
- Pulp & Paper - Bleaching systems, digesters
- Water Treatment - Filtration systems, desalination plants
- Marine Applications - Ship building, offshore structures
- Fertilizer Plants - Ammonia and urea production
Get a Quote
Looking for bulk pricing or urgent delivery? Request a Quote for Stainless Steel 304 Forged Fittings today.
Frequently Asked Questions (FAQs)
What is the difference between forged and cast stainless steel fittings?
Forged SS 304 fittings are manufactured by shaping heated metal under pressure, which improves grain structure, strength, durability, and fatigue resistance. Cast fittings are made by pouring molten metal into molds and are generally used for lower-pressure applications.
Will SS 304 forged fittings rust?
Stainless Steel 304 forged fittings offer excellent corrosion resistance due to their chromium content, which forms a protective oxide layer. They do not rust under normal atmospheric or fresh-water conditions. In high-chloride environments, SS 316 is recommended.
How do I verify the quality of SS 304 forged fittings?
Quality can be verified through Mill Test Certificates (EN 10204 3.1), dimensional inspection reports, hardness testing, and optional PMI testing. Third-party inspection by agencies like SGS, TÜV, or Bureau Veritas can also be arranged.
What is the maximum pressure rating of SS 304 forged fittings?
SS 304 forged fittings are available in pressure classes of 3000, 6000, and 9000 PSI, depending on the size and application requirements.
What is the price of SS 304 Forged Fittings per kg?
The price of SS 304 Forged Fittings per kg depends on size, pressure rating, quantity, and market conditions. Contact Amardeep Steel for the latest pricing and a customized quotation.
