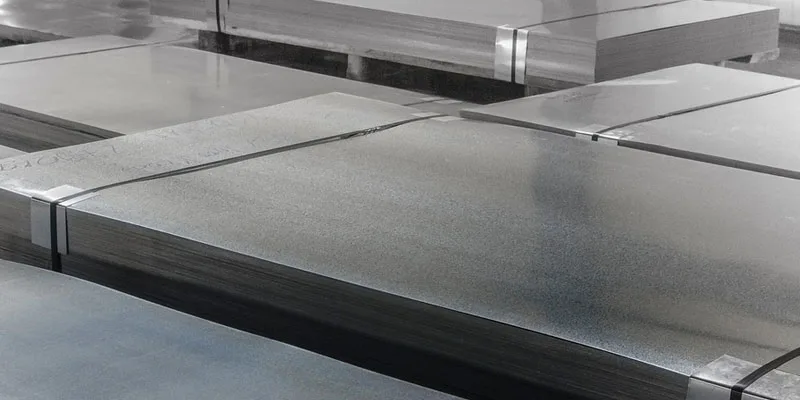

Your Premier Source for Stainless Steel 316 Sheets & Plates
Amardeep Steel Centre is a distinguished manufacturer, supplier, and exporter of top-grade Stainless Steel 316 Sheets and Stainless Steel 316 Plates. We maintain a comprehensive inventory of ASTM A240 Grade 316 Plate and related flat-rolled products, including SS 316 Coils, catering to diverse industrial requirements globally. Ask For Our Latest Price List for SS 316 Sheets and Plates Today!
Our stainless steel 316 sheets and stainless steel 316 plates are versatile metallic products, produced in a flat form from the highly durable 316 austenitic stainless steel. The ASTM A240 Type 316 specification governs these stainless steel 316 sheets and plates, as well as strips, primarily intended for pressure vessel applications and other demanding environments. This specification also encompasses other grades, including austenitic, martensitic, duplex, or super duplex stainless steels, and high molybdenum steel alloys.
The SS 316 Coil (often processed into stainless steel 316 sheets or strips) is renowned for its exceptional high-temperature resistance, making it suitable for applications up to 870°C in intermittent services and 925°C for continuous services. Our SUS 316 Strip is widely used for lining applications and manufacturing pipes. View Dimensions of Stainless Steel 316 Sheets and Plates below.
As one of the most trusted stainless steel plates and sheets suppliers in India, Amardeep Steel Centre guarantees quality and competitive pricing for all our stainless steel 316 sheets. Contact us to get the latest stainless steel 316 sheet and plate price list or for any other make. We are a major AISI 316 stainless steel sheet manufacturer in India, committed to excellence in every product.
Detailed Specifications for Stainless Steel 316 Sheets and Plates
| Property | Value |
|---|---|
| Product Names | Stainless Steel 316 Sheets, Stainless Steel 316 Plates, 316 SS Sheet, 316 SS Plate, SS 316 Coil |
| ASTM Specification | ASTM A240 / ASME SA240 (Governing stainless steel 316 sheets and plates for pressure vessels) |
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000mm x 2000mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm for stainless steel 316 sheets and plates. Cut to size available. |
| Thickness | 0.1mm to 100 mm Thk for stainless steel 316 sheets (thinner range) and plates (thicker range) |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. (Applicable to stainless steel 316 sheets) |
| Temper | Annealed (Common for stainless steel 316 sheets and plates) |
| Condition | Polished on both sides, as per requirement |
| Finish | Hot rolled plate (HR) for stainless steel 316 plates, Cold rolled sheet (CR) for stainless steel 316 sheets, 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealing, Pickling, Polishing, Rolling, Cutting, Bending, Forging, Minor Fabrication for your stainless steel 316 sheet and plate orders. |
| Test Report | Raw Materials Certificate, EN 10204/3.1B, 100% Radiography Test Report for stainless steel 316 plates where applicable. Third Party Inspection Report. |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting for stainless steel 316 plates. |
| Specialized in | Stainless steel 316 sheets: material < 5.00 mm thick & > 600 mm wide. Stainless steel 316 plates: material > 5.00 mm thick & > 250 mm wide. |
| Amardeep Steel Centre Offers | Free Quote, Inquiry answered within 24 hours for stainless steel 316 sheets and plates. Plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing. |
Standard Sizes for 316 SS Sheets and Plates
- Cold rolled Stainless Steel 1.4401 / 1.4436 Plate (often supplied as sheet): 0.5-6.4 mm
- Hot rolled 316 Stainless Steel Plate: 3.0–10.0 mm (and thicker)
- SS A240 316 Sheet: 0.01~200mm (general range covering foils to thick plates)
Buy Certified & Tested UNS S31600 (SS 316) Sheets and Plates from Amardeep Steel Centre. Check ASME SA240 Grade 316 Plate and Sheet Dimensions.
Our Ready Stock of ASTM A240 Stainless Steel 316 Plates and Sheets
Buy Certified & Tested UNS Explore our extensive ready stock of various stainless steel 316 sheets and stainless steel 316 plates, including:
| Product Type | Product Type |
|---|---|
| Stainless Steel 316 Chequered Plate | UNS S31600 Quarto Plate |
| ASTM A240 316 Sheet | SS A240 316 Tisco Plate |
| 316 Stainless Steel Chequer Plate | Stainless Steel 1.4401/1.4436 Tread Plate |
| ASME SA240 316 Checker Plate | 316 SS Strip (from coil) |
| Stainless Steel 1.4401/1.4436 Plate Brushed Finish | SS 316 Hot Rolled Sheet/Plate |
| Stainless Steel 316 10mm Shim (Sheet) | UNS S31600 Cold Rolled Sheet |
| Stainless Steel 1.4401/1.4436 1/4 Inch Coil | 316 SS Perforated Sheet |
| 316 SS Plate | SS A240 316 Rolling Plate |
| UNS S31600 Hot Rolled Plate | Stainless Steel 1.4401/1.4436 Foil (Sheet) |
| SS A240 316 Cold Rolled Plate/Sheet | ASME SA240 316 BBQ Plate |
| Stainless Steel 1.4401/1.4436 Plate 2b Finish | ASTM A240 316 Coil |
| ASME SA240 316 Plate Mill Finish | 316 Stainless Steel Strip Tape |
| 316 SS Custom Cut Plate | UNS S31600 Sheet |
| SS A240 316 Shim (Sheet) | Stainless Steel 316 Laser Cut Plate |
| Stainless Steel 1.4401/1.4436 Embossed Sheet | SS 316 Perforated Sheet (Duplicate implies high stock) |
Get a Quote for ASTM A240 Type 316 Sheets and Plates from Amardeep Steel Centre. View our comprehensive Stainless Steel 316 Plate and Sheet Sizes.
Explore Various Types of Stainless Steel 316 Sheets and Plates (wITH IMages)

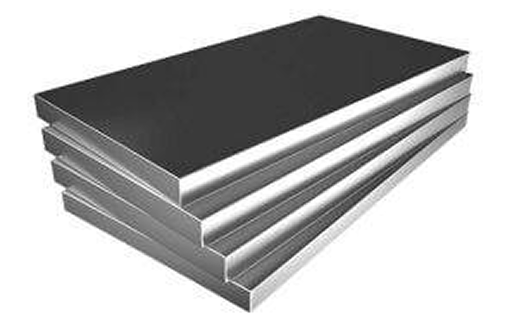

2mm Stainless Steel 316 Sheet

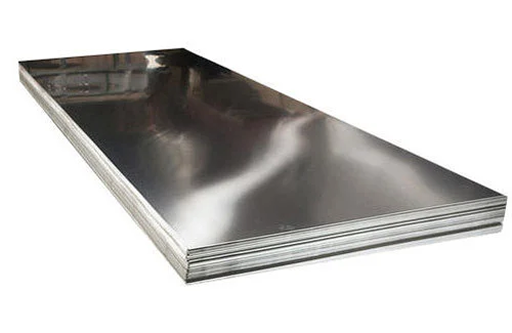

Corrugated Cold Rolled SUS 316 5mm Sheet

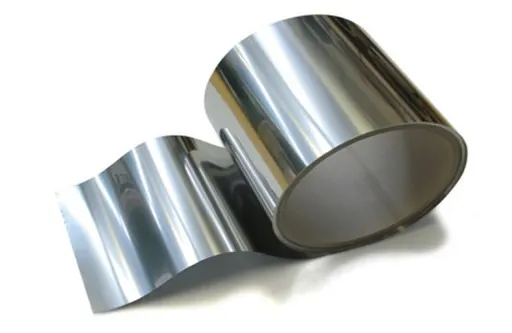

ASME SA240 Type 316 Foil (Thin Sheet)
10mm ASTM A240 316 Stainless Steel Plate

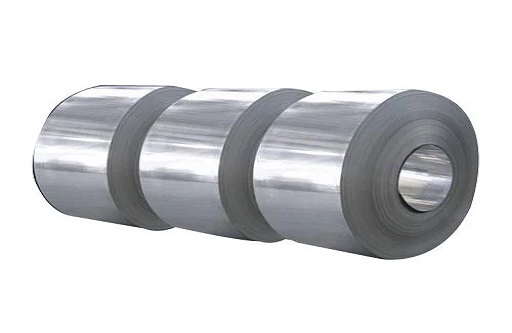

4ft x 8ft inch size 316 stainless steel sheet coil

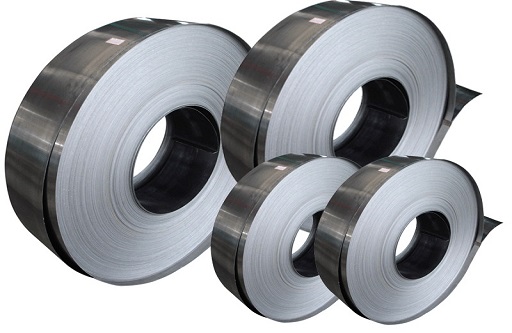

Stainless Steel Strip 316 (cut from sheet/coil)

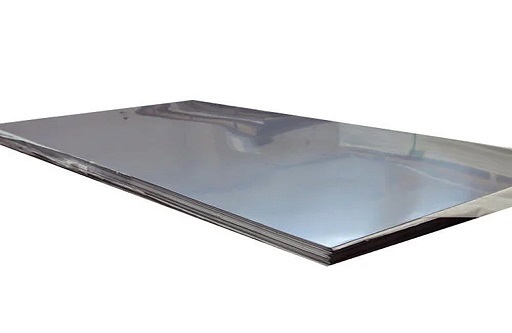

ASTM 316 4x8 mirror finished stainless steel sheet

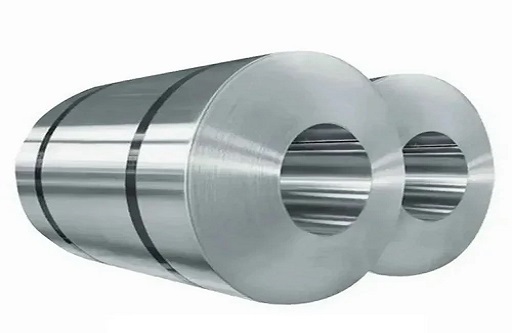

ASTM A240 Type 316 Coil (for sheets & plates)

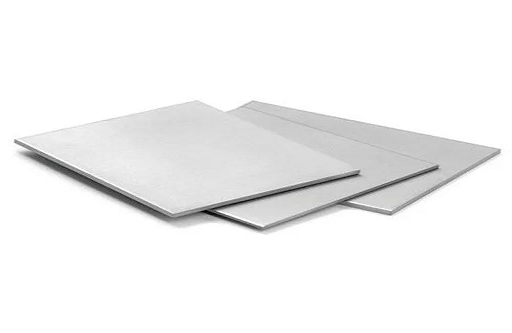

24 Gauge 316 Stainless Steel Sheet

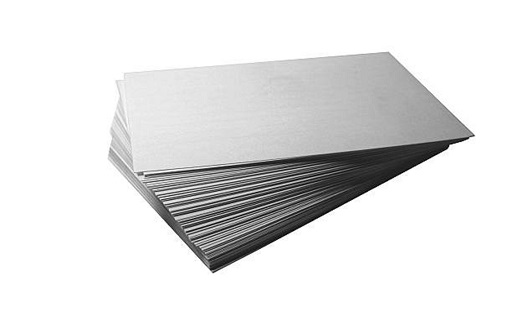

316 Stainless Steel Sheet

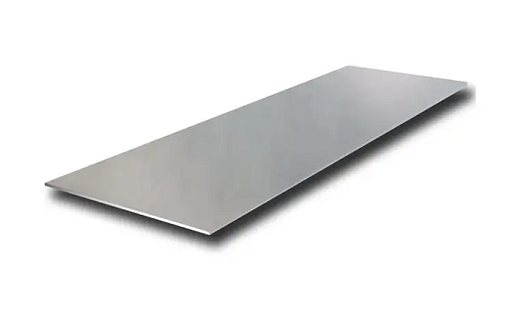

UNS S31600 Cold Rolled Sheet

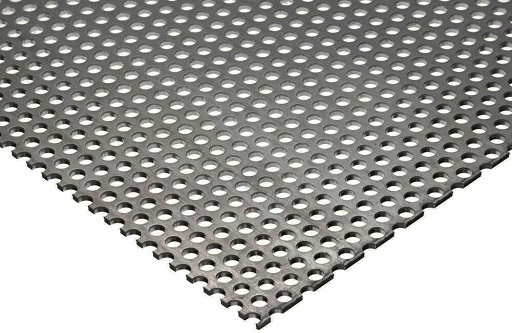

Stainless Steel 316 Perforated Sheet

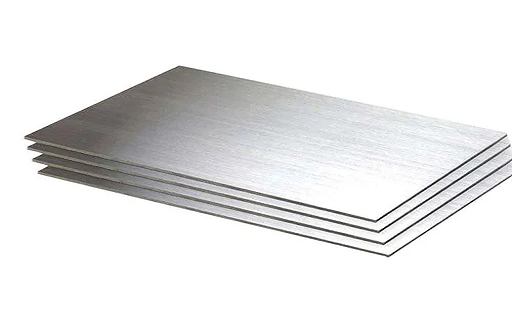

Stainless Steel Sheet 316 2B Finish

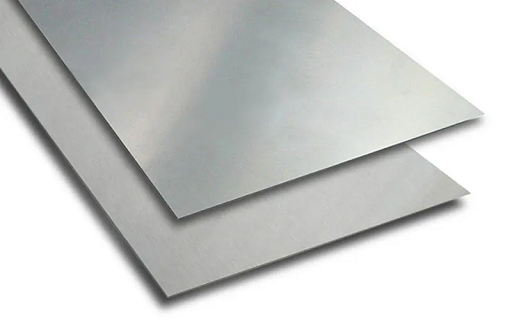

Polished 316 Stainless Steel Sheet
AISI 316 stainless steel sheet
1.4401 / 1.4436 stainless steel plate
Indicative Price List for Stainless Steel 316 Sheets and Plates
Please Note: Prices are indicative and subject to change. Contact Amardeep Steel Centre for current pricing on stainless steel 316 sheets and plates.
| Product Description (SS 316 / 316L Sheets & Plates) | Price in INR (Approx.) | Price in USD (Approx.) | Price in UAE Dirham (Approx.) |
|---|---|---|---|
| PLATES - SA 240 TYPE 316/316L SIZE IN MM:- 10,353 X 2,200 X 48.00 [HOT ROLLED STAINLESS STEEL PLATE] | INR 193/kg | 2.57 USD/kg | 9.45 AED/kg |
| PLATES - SA 240 TYPE 316/316L SIZE IN MM:- 7,850 X 3,070 X 60.00 [HOT ROLLED STAINLESS STEEL PLATE] | INR 193/kg | 2.57 USD/kg | 9.45 AED/kg |
| H. R. STAINLESS STEEL SHEETS GRADE 1.4404 (316L) (WIDTH > 1280MM) | INR 141/kg | 1.88 USD/kg | 6.90 AED/kg |
| STAINLESS STEEL H.R SHEET GRADE 316 | INR 146/kg | 1.95 USD/kg | 7.15 AED/kg |
| COLD ROLLED STAINLESS STEEL SHEET-IM COIL (for sheets) GRADE:316S16,BS5770 | INR 613/kg | 8.17 USD/kg | 30.00 AED/kg |
Buy SS 316 Foil (thin sheet) at a discounted rate. Amardeep Steel Centre is your top-notch stockist for 316 Stainless Steel Perforated Sheets and robust Stainless Steel 316 Plates.
Chemical Structure of ASME SA240 316 Plates and Sheets
| Grade | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr | Mo | Ni | Fe (min) |
|---|---|---|---|---|---|---|---|---|---|
| SS 316 | 0.08 | 2.0 | 1.0 | 0.045 | 0.030 | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 |
Mechanical Analysis of 316 Stainless Steel Coils, Sheets, and Plates
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm³ (0.289 lbs/in³) | 1400 °C (2550 °F) | Psi - 75000 , MPa - 515 | Psi - 30000 , MPa - 205 | 35 % |
Material Equivalents for SS A240 316 Sheets and Plates
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Weight Chart for ASTM A240 Grade 316 Stainless Steel Sheets and Plates (Approximate)
Note: Based on approx. density of 8.0 g/cm³ for SS 316.
| Thickness | Weight per Unit Area (lbs/in²) for SS 316 Sheet/Plate | Weight per Unit Area ( kg/m ²) for SS 316 Sheet/Plate |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Standard Dimensions for Stainless Steel 316 Sheets and Plates (UNS S31600)
Metric Dimensions (Typical for SS 316 Sheets & Plates)
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
Imperial Dimensions (Typical for SS 316 Sheets & Plates)
| Surface finish | Gauge (in) for Sheets / Thickness (in) for Plates | Width (in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 10–24 | max. 72* |
| 2D – Cold rolled, heat treated, pickled | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Polished (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
Applications of Stainless Steel 316 Sheets and Stainless Steel 316 Plates
Our stainless steel 316 sheets are ideal for:
- Food Processing Equipment
- Pharmaceutical Equipment
- Laboratory Benches & Equipment
- Architectural Paneling & Trim
- Automotive Trim and Molding
Our stainless steel 316 plates are widely used in:
- Chemical and Petrochemical Processing
- Storage Tanks and Pressure Vessels
- Marine Equipment and Boat Fittings
- Heat Exchangers
- Heavy-duty Industrial Fabrication
Both sheets and plates are used in:
- Thermal & Nuclear Power Plants
- Fertilizer Plants
- Oil & Gas Exploration
- Desalination Plants
- Paper Industries
Comparative Properties of Stainless Steel 316 Sheets and Plates
| Alloy Group | Magnetic Response¹ | Work Hardening Rate | Corrosion Resistance² (for SS 316 Sheets/Plates) | Hardenable |
|---|---|---|---|---|
| Austenitic (e.g., 316) | Generally No | Very High | High | By Cold Work |
| Ferritic | Yes | Medium | Medium | No |
| Martensitic | Yes | Medium | Medium | Quench & Temper |
| Precipitation Hardening | Yes | Medium | Medium | Age Harden |
Generally non-magnetic in annealed condition; may become slightly magnetic after cold working. Excellent general corrosion resistance, particularly against pitting and crevice corrosion in chloride environments for austenitic grades like SS 316.
Why Choose Amardeep Steel Centre for Your Stainless Steel 316 Sheets and Plates?
- Specialized Manufacturer, Supplier & Exporter: Your one-stop solution for all stainless steel 316 sheets and stainless steel 316 plates requirements.
- Extensive Experience: With over 20 years of experience manufacturing 316 stainless steel coils, sheets, and plates in India, we possess unparalleled expertise.
- Comprehensive Stock: Ready stock of stainless steel 316 sheets, stainless steel 316 plates, SUS 316 Strip, and coils available at reasonable costs.
- Global Reach: We supply stainless steel 316 sheets and stainless steel 316 plates to clients in Saudi Arabia, Oman, South Africa, Qatar, Indonesia, and across the globe.
- Quality Assurance: Our stainless steel 316 sheets and plates meet stringent international standards, including ASTM A240.
- Competitive Pricing: Get the best ss 316 sheet price and 316 stainless steel plate price without compromising on quality.
The UNS S31600 Sheet (a designation for stainless steel 316 sheets) is extensively used as cladding material, as well as for platforms, tankers, and storage containers. Stainless steel 316 sheets boast a minimum tensile strength of 530MPa, while our stainless steel 316 plates have a minimum tensile strength of 520MPa. The high melting point of 316 Stainless Steel Sheets (1400°C) allows them to perform reliably at elevated temperatures. Grade 316 Shim (thin stainless steel 316 sheets) is used for gap-filling and mechanical shock absorption, and the thinner SS 316 Foil is ideal for corrosion-resistant cladding.
Amardeep Steel Centre is your reliable partner for all stainless steel 316 sheet and plate products. Please contact us with your specific requirements, and we will ensure prompt and efficient service.
Global Supply & Inquiry for SS 316 Sheets and Plates
Are you looking to buy Stainless Steel 316 Sheets or Stainless Steel 316 Plates in your country?
Amardeep Steel Centre is a renowned exporter of stainless steel 316 sheets and stainless steel 316 plates to numerous countries, including:
United States of America, Malaysia, UAE, Indonesia, Saudi Arabia, Iran, Qatar, India, China, United Kingdom, Singapore, Canada, Thailand, South Korea, Turkey, Philippines, Egypt, Germany, Italy, Japan, Russia, Vietnam, Australia, South Africa, Portugal, Morocco, Costa Rica, Kazakhstan, Netherlands, Mexico, Brazil, France, Spain, Taiwan, Nigeria, Bangladesh, Kuwait, Iraq, Ukraine, Poland, Jordan, Romania, Oman, Hong Kong, Venezuela, Colombia, Norway, Chile, Trinidad & Tobago, Greece, Czechia, Belgium, Sri Lanka, Cyprus, Angola, Myanmar (Burma), United Kingdom, Canada, South Korea, Thailand, Netherlands, Spain, Turkey, Australia, Mexico, Pakistan, Vietnam, Brazil, Philippines, France, Taiwan, Poland, South Africa, Russia, Nigeria, Kuwait, Czechia, Norway, Romania, Egypt, Oman, Sweden, Belgium, Hong Kong, Israel, Colombia, Switzerland, Denmark, Finland, Argentina, Venezuela, Peru, Ukraine, Chile, Bangladesh, Portugal, Ireland, Austria, Algeria, Greece, Iraq, New Zealand, Slovakia, Hungary, Kazakhstan, Slovenia, Lithuania, Serbia, Sri Lanka, Bahrain, Bulgaria, Morocco, Tunisia, Croatia, Jordan, Ecuador, Trinidad & Tobago, Estonia, Azerbaijan, Ghana, Lebanon, Cyprus, Dominican Republic, Latvia, Libya, Costa Rica, Cambodia, Macedonia (FYROM), Belarus, Jamaica, Palestine, Turkmenistan
For the best stainless steel 316 sheets and stainless steel 316 plates prices, quality assurance, and timely delivery, contact Amardeep Steel Centre.
Frequently Asked Questions (FAQs)
What is stainless steel 316 used for?
Stainless Steel 316, including stainless steel 316 sheets and stainless steel 316 plates, is highly valued for its excellent corrosion resistance, especially against chlorides and other industrial solvents. Common applications include:
* Marine equipment and boat fittings
* Chemical and petrochemical processing equipment
* Pharmaceutical and medical equipment
* Food processing machinery
* Heat exchangers
* Architectural applications in coastal or industrial environments
* Pulp and paper industry components
At Amardeep Steel Centre, we supply stainless steel 316 sheets and plates for these and many other demanding applications.
What is the price of 316 SS sheet?
The price of 316 SS sheet (and stainless steel 316 plates) can vary significantly based on several factors, including:
* Thickness and Size: Larger or thicker sheets/plates generally cost more.
* Finish: Different finishes (e.g., 2B, No. 4, Mirror) have different processing costs.
* Quantity: Larger orders may receive volume discounts.
* Market Conditions: Global supply and demand for nickel, chromium, and molybdenum (key components of SS 316) affect pricing.
* Supplier: Prices can differ between manufacturers and stockists.
For the most current ss 316 sheet price or 316 stainless steel sheet price, please contact Amardeep Steel Centre directly for a personalized quote based on your specific requirements.
Which is better, stainless 304 or 316?
Neither is universally "better"; it depends entirely on the application.
* Stainless Steel 304: Is a versatile and widely used stainless steel. It offers good corrosion resistance in many environments and is generally more affordable. It's excellent for general-purpose applications.
* Stainless Steel 316: Contains molybdenum, which significantly enhances its corrosion resistance, particularly against pitting and crevice corrosion in chloride-containing environments (like seawater or de-icing salts). It also performs better at elevated temperatures.
If your application involves exposure to harsh chemicals, marine environments, or high salt concentrations, stainless steel 316 sheets or plates are often the superior choice. For less demanding environments, SS 304 might be more cost-effective.
How much is 316 stainless steel price per kg?
Similar to the price of sheets, the 316 stainless steel price per kg is not fixed. It is influenced by the factors mentioned in Q2 (thickness, finish, quantity, market fluctuations, and the specific form of the product – whether it's sheet, plate, coil, bar, etc.).
To get an accurate 316 stainless steel price per kg for the stainless steel 316 sheets or stainless steel 316 plates you require, please reach out to Amardeep Steel Centre with your detailed specifications.
Is 316 stainless steel expensive?
316 stainless steel is generally more expensive than some other common stainless steel grades, like 304. This is primarily due to its higher nickel content and the addition of molybdenum, which are valuable alloying elements.
